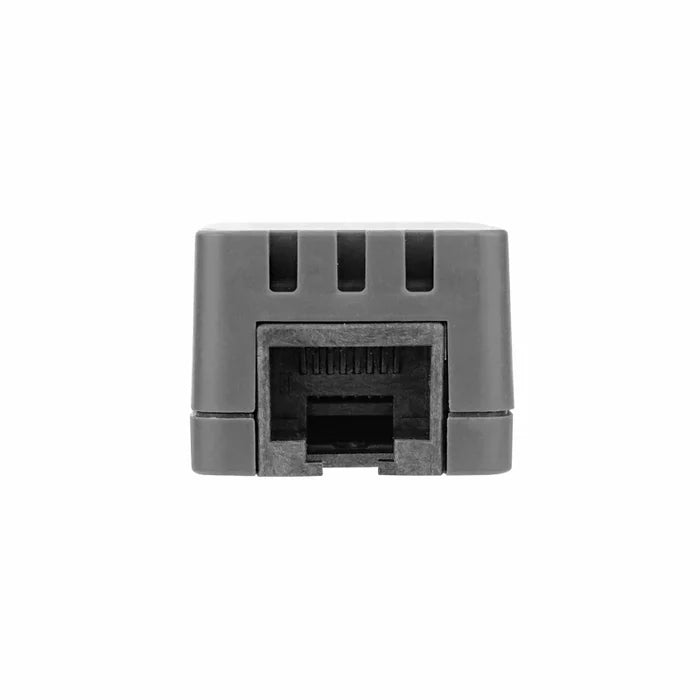

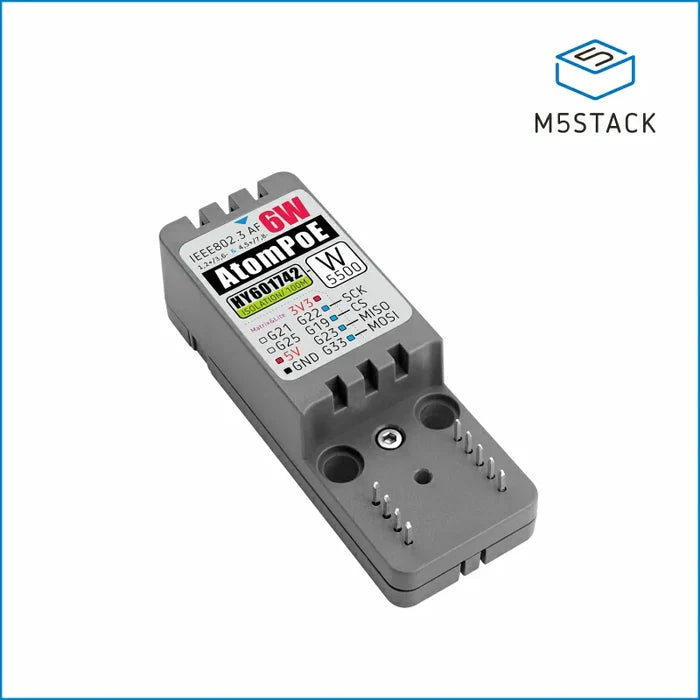

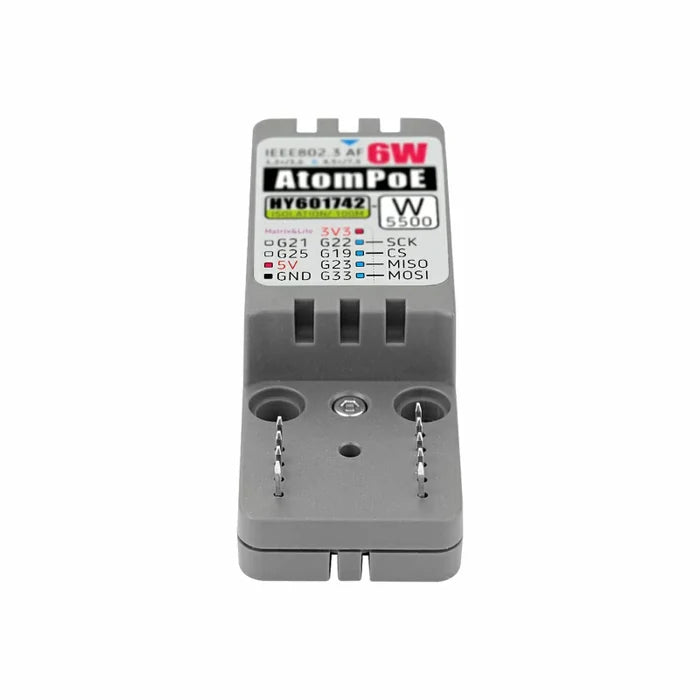

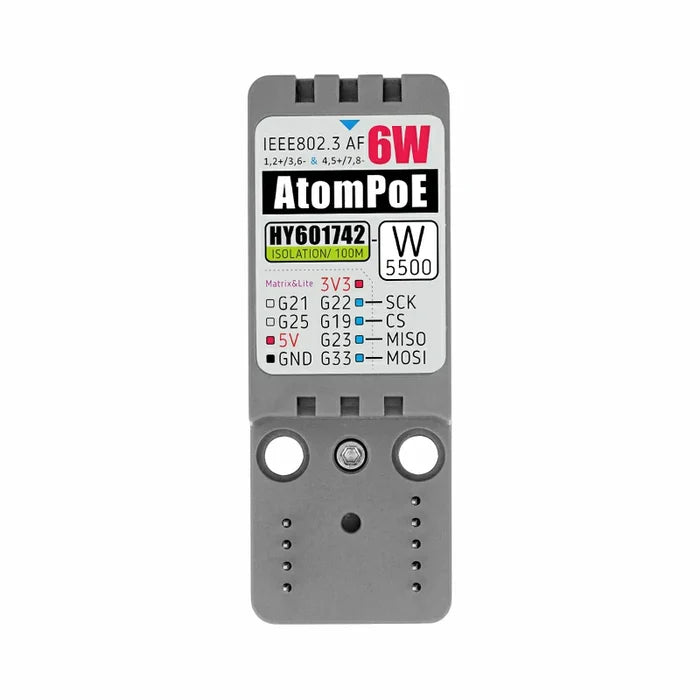

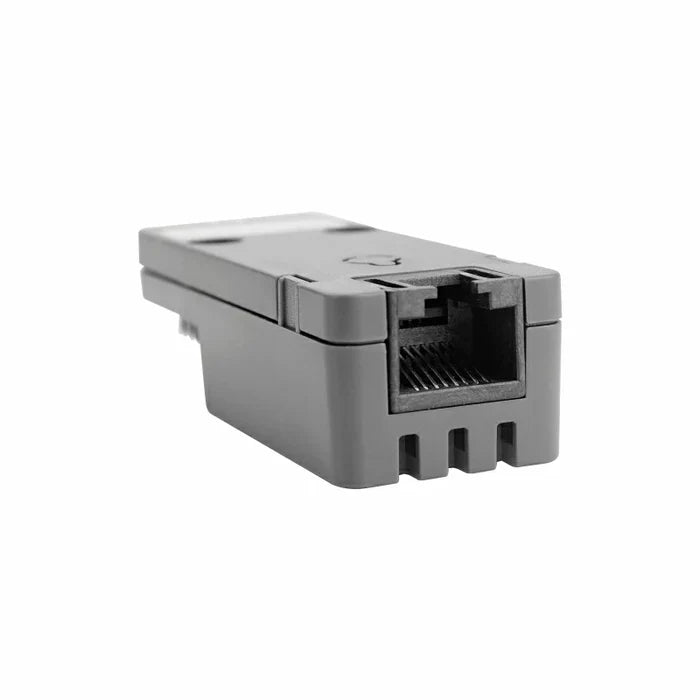

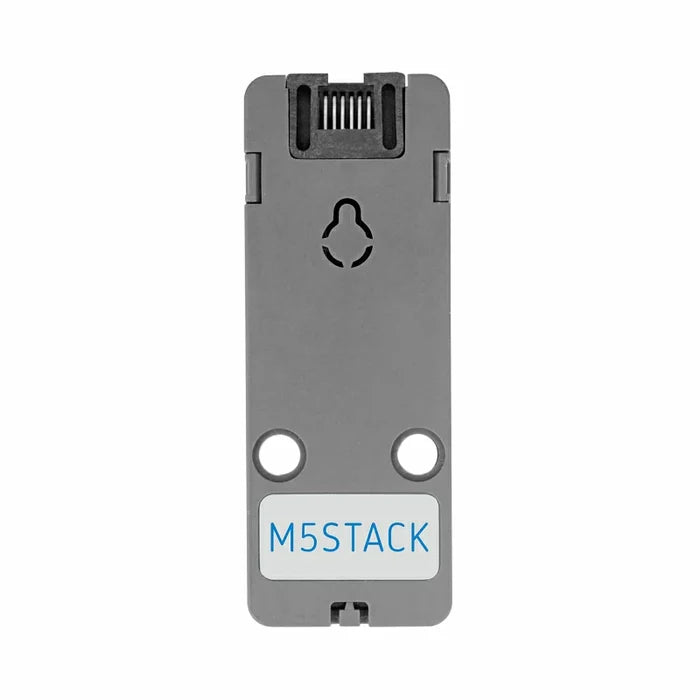

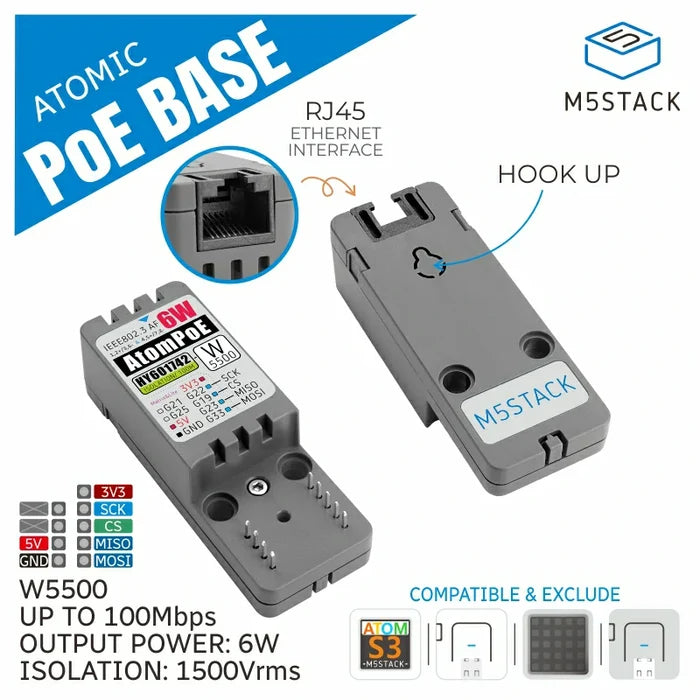

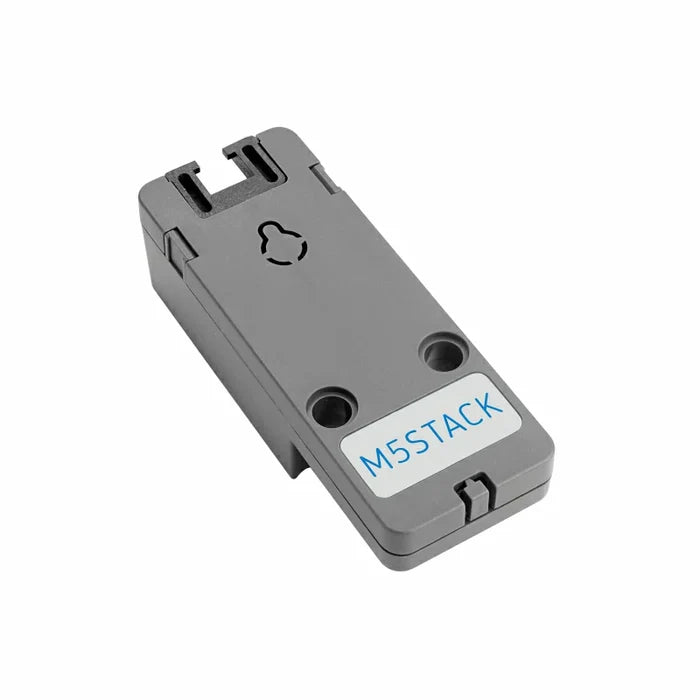

ATOMIC PoE Base W5500

Description

The Atomic PoE Base is an Ethernet controller base compatible with the ATOM series main control units. It supports PoE (Power over Ethernet) technology, allowing the device to be powered directly through a PoE hub/switch without the need for a separate power supply, effectively reducing wiring costs. The base features a built-in W5500 embedded Ethernet controller, which integrates a TCP/IP protocol stack, 8 independent hardware sockets, and 10/100M Ethernet data link layer (MAC) and physical layer (PHY), providing a more convenient internet connection solution for embedded systems. It meets the wired network access requirements in real production environments.

Features

• Compatible with Atom-Lite/Atom-Matrix/AtomS3/AtomS3-Lite
• Supports PoE IEEE802.3 AF
• Wired Ethernet access
• Supports 8 independent hardware sockets for simultaneous communication
• Supports TCP, UDP, ICMP, IPv4, ARP, IGMP, PPPoE protocols
• Integrated 10BaseT / 100Base-T Ethernet PHY

Includes

• 1 x Atomic PoE Base

Applications

• Remote control
• Wired network access

Specifications
