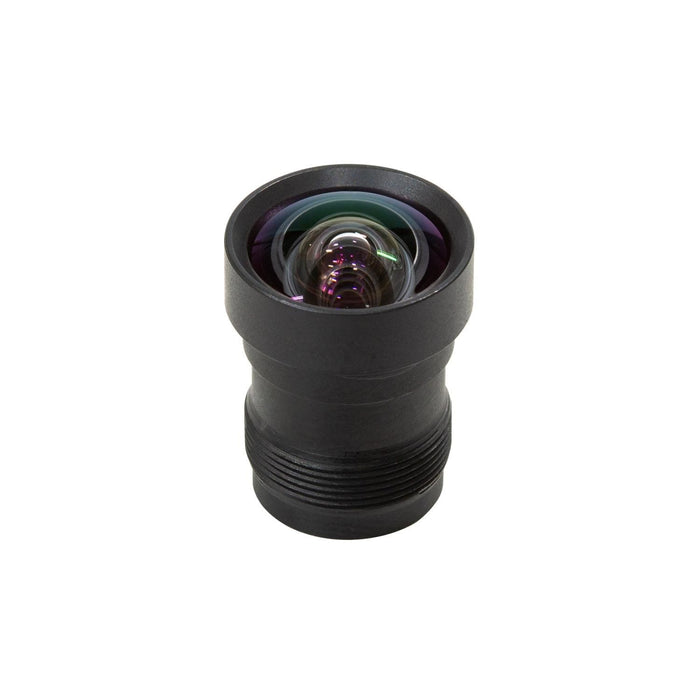

M12 Lens - 75-Degree FOV with Raspberry Pi HQ Camera Adapter

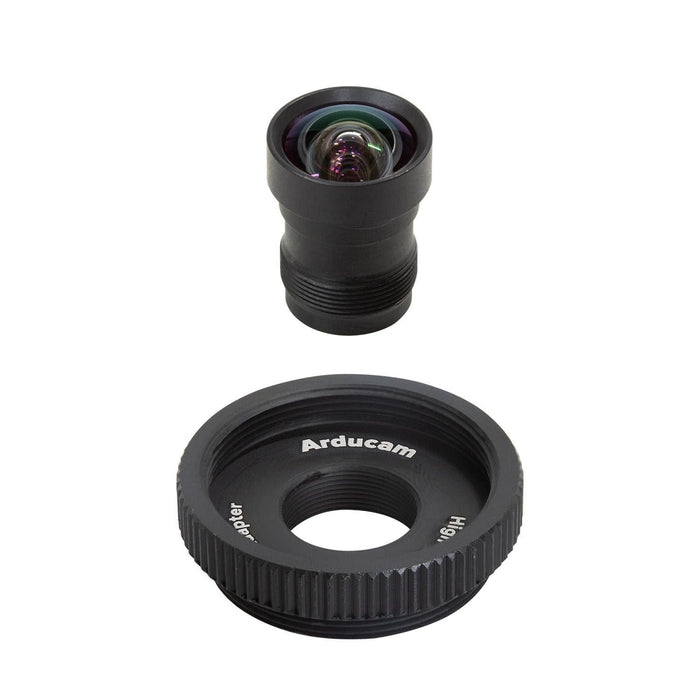

This 75-degree Field of View (FOV) M12 lens is an inexpensive lens option for the Raspberry Pi High Quality Camera, which can be fitted using the included HQ Camera adapter..or just use the M12 lens with the M12 version of the HQ Camera

The lens can also be used as an alternative lens option for the Arducam Mini High Quality Camera.

The lens has a 75° FoV - a nice all-rounder for general photography projects with your Raspberry Pi.

Why an M12 lens?

• Lightweight: M12 lenses are tiny and take up less space than traditional C-mount lenses
• Cost-effective: M12 lenses are generally cheaper than most C-mount lenses
• Project-centric: Different projects require different lens requirements. M12 lenses provide a more affordable way to collect lenses for different scenarios.

Specification

• Optical Format: 1/2.3”
• Aperture: F2.8
• Field of View (FOV): 75° (H)
• Focal Length: 3.9mm
• Back Focal Length: 4.49mm
• Mount: M12 mount
• MOD: 0.3m
• Dimension: Φ14×18.67mm
• Weight: 5g
• IR Sensitivity: sensitive to visible light, with 650nm IR filter
• Model No: M23390H08

Note: HQ camera not included.
